High-Speed Dental Handpiece – LED Light, Push Button | 4-Hole Connection

Upgrade your dental practice with the GoldGreen Air-Driven Dental High-Speed Turbine Handpiece, engineered for smooth, precise, and efficient procedures. Designed with durability and performance in mind, this premium handpiece delivers optimal cutting power, reduced vibration, and enhanced ergonomics to ensure maximum comfort for both dentist and patient. This high-speed handpiece utilizes compressed air to power a turbine, rotating the bur at speeds exceeding 300,000 RPM. Integrated LED lighting provides optimal visibility during procedures.

Key Features:

✔ Powerful & Consistent Performance – High-speed turbine with precision bearings ensures smooth operation and reliable cutting efficiency.
✔ Ergonomic, Lightweight Design – Comfortable grip reduces hand fatigue, allowing for greater control and precision during extended procedures.
✔ Recommended Working Pressure: 0.2–0.25 MPa
✔ Maximum Speed: ≥300,000 RPM
✔ Bur Size: 1.595–1.599 mm, length ≤20 mm
✔ Torque Output: 22–24 W (torque head), 20–22 W (standard head)
✔ Noise Level: ≤62 dB
✔ Net Weight: 45–47 g

Whether you’re performing routine restorations or complex procedures, the GoldGreen Dental High-Speed Handpiece provides the precision, speed, and reliability you need to achieve outstanding results.

Instructions for Use:

Please follow the instructions below to ensure optimal performance, longevity, and patient safety.

1. Pre-Use Setup

• Inspect the Handpiece: Verify that the handpiece is clean, undamaged, and free of debris.

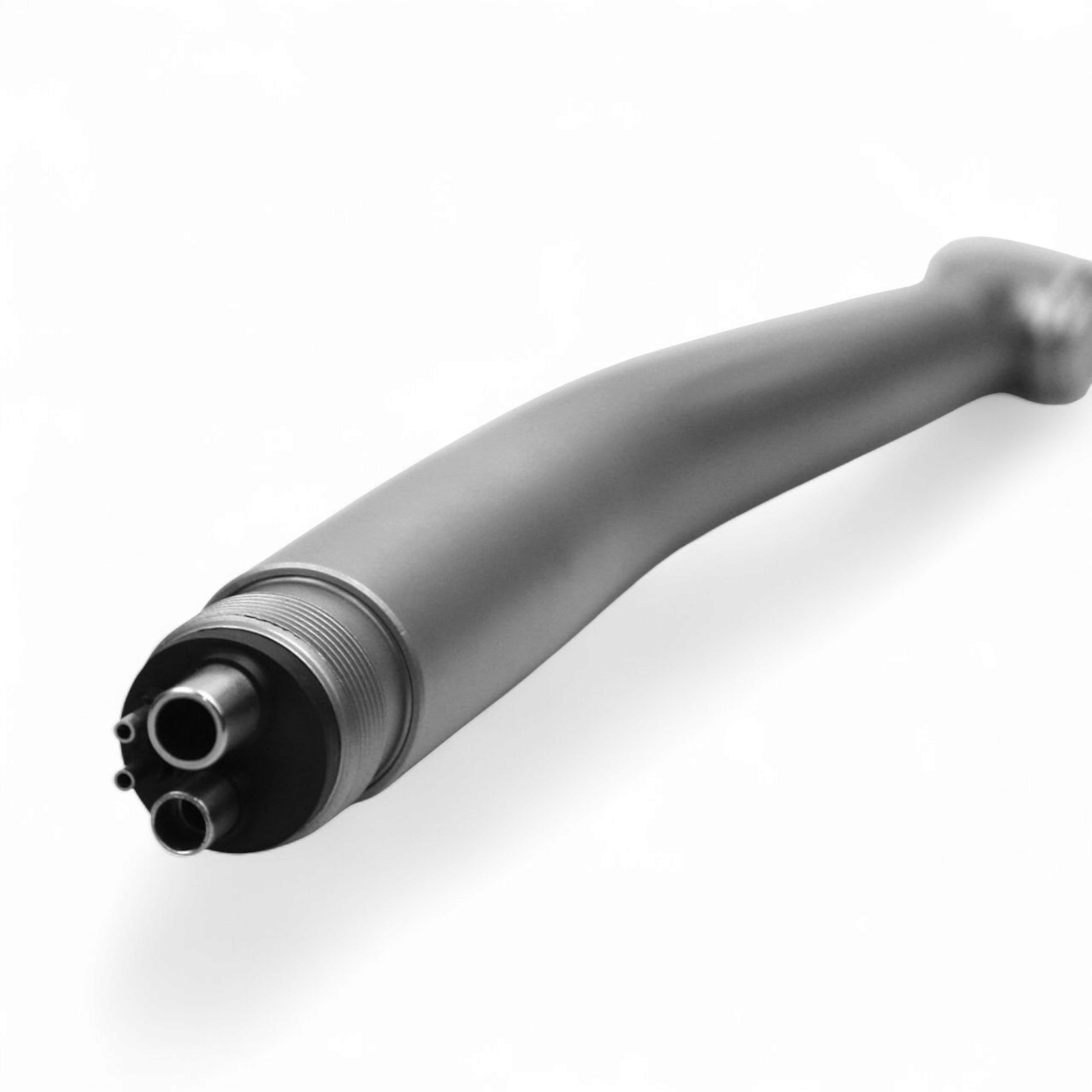

• Connection: Attach the 4-hole handpiece connector securely to the dental unit’s tubing.
• Check Air Pressure: Ensure operating pressure is within the recommended range of 0.2–0.25 MPa (2–2.5 bar).
• Bur Installation:
  • Use the push-button chuck to insert the correct bur size (1.595–1.599 mm, ≤20 mm length).
  • Push the button firmly and insert the bur until it locks into place.
  • Tug lightly to confirm it is secured.

2. Operation

• Handpiece Activation: Engage air pressure using the foot pedal. The turbine will rotate at speeds of ≥300,000 RPM.

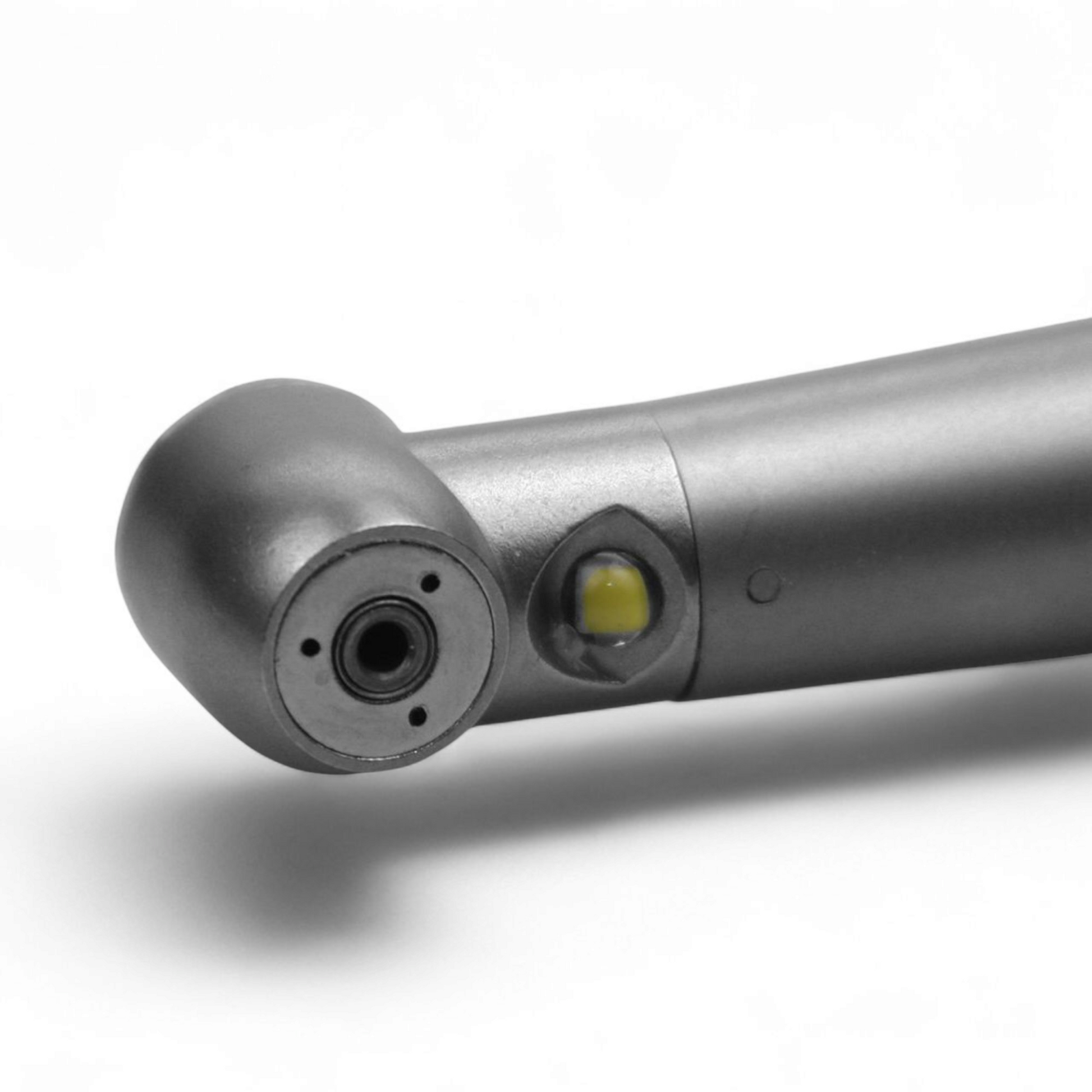

• LED Illumination: The integrated LED will activate simultaneously to improve visibility.
• Control & Ergonomics: Use the lightweight, contoured grip to maneuver comfortably and reduce fatigue during long procedures.
• Recommended Usage: Ideal for tooth preparation, crown removal, and other restorative tasks.

3. Post-Use Maintenance

• Cleaning:
  • Disconnect from the tubing.
  • Wipe external surfaces with an approved disinfectant wipe.
  • Do not immerse in water or ultrasonic cleaner.
• Lubrication:
  • Apply handpiece lubricant via the drive air tube (as per lubricant manufacturer’s instructions).
  • Run the handpiece for 20–30 seconds to expel excess oil.
• Sterilization:
  • Autoclave at 134°C (273°F) for 3–5 minutes.
  • Allow to cool fully before next use.

4. Safety & Warnings

• For professional dental use only.
• Never operate the handpiece without a securely installed bur.
• Do not exceed recommended pressure or speed specifications.
• Regularly inspect bearings and turbine for wear to maintain performance.
• Use only compatible burs and maintain proper sterilization protocols.
